“Tower of Observations”

Contemplations for Copenhagen 6/9


The Cartography of the Pause, Visions for Copenhagen Cultural Capital of Europe 1996


Publication: 1995/02, 1996/02, 2002/04

Exhibition: Charlottenborg Udstillingsbygning, 28.12.1995 / 04.02.1996

1995/02b

Selected Invitations

Invitations

CONTEMPLATIO 6/9

SURVEYING


CONSPICIO:

The reading of the signs within the ‘Templum’ represented by the four views and the aerial photograph.


Two courtyards, a courtyard with low walls placed within the courtyard of an urban block. Entrances in corners. Inside is outside is inside is outside etc. A space within a space within a space. No orientation.


LEGEM DIXIT:

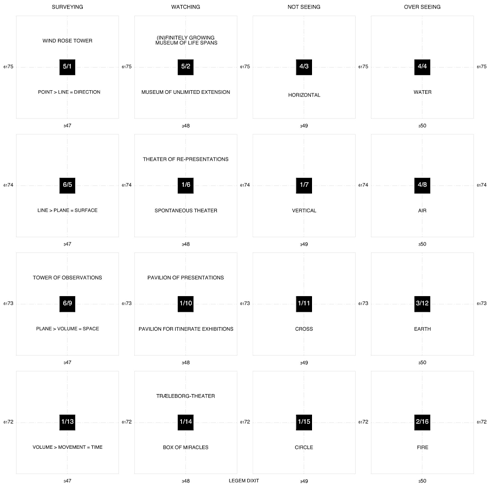

The ‘theme’ for this specific ‘Templum’.


Plane > Volume = Space

CONREGIO:


CONREGIO:

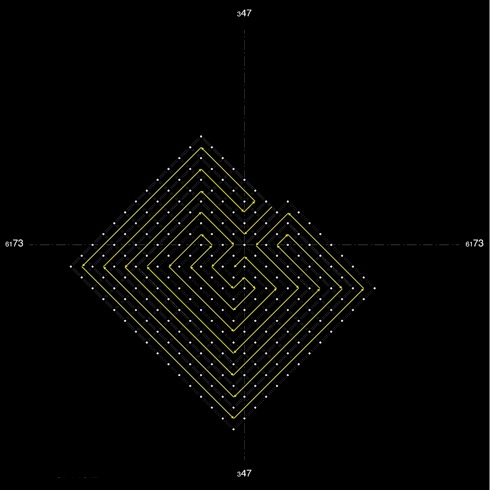

The laying out of the ‘Template’ of the Labyrinth and its directions.


The UTM Grid point is the center of a 4.8 m. cross laid out in an angle of 45 dgr. with the directions of the UTM Grid. Within the four corners of this cross four 1.2 m. right angles are projected in the directions

of the cross. Then four points are projected circumscribing a 4.8 m. square around the cross. From the south-western end of the cross the drawing of the labyrinth is started in the south-eastern direction, which means that the entrance of the labyrinth will be facing the entrance of the courtyard in the north-western corner of the urban block.


CORTUMIO:

The assessing of the signs by the rules of the inaugurator’s science, so the proposal of a design.


Tower of Observations. As an other space within a space within a space a structure is proposed that is both an aviary and a stair-tower for the observation of birds, stars, light, shadow and other natural phenomena. An open

frame enclosed by wire netting and filled with plants and birds, placed within the interior space of an urban block, becomes a representation of encapsulated nature, an enclosed garden, a micro-cosm for

the observation of the signs of nature. At the same moment this aviary is a huge stair-tower, a stair (steps are 1.2 x 1.2 m. and the riser of each step is 15 cm.)

following the route through the labyrinth that at its endpoint is almost 30 m. high.


VERBA CONCEPTA:


Aviary, any large enclosure specially built to hold a great number of live birds in confinement. From Latin

‘aviarium’, from ‘avis’, bird, from Indo Germanic ‘awi’.

‘Awi-spek’, observer of birds, ‘awi’ = bird + ‘spek’ = to see , in Latin

Plan

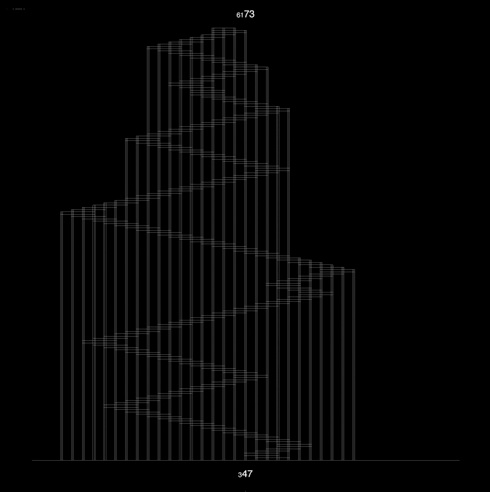

Elevation looking towards North

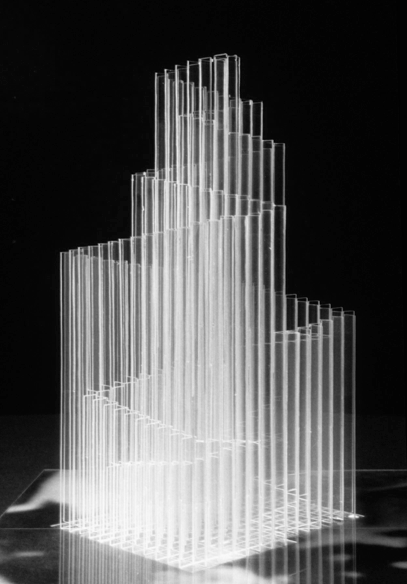

Model looking towards North

Negative model in plexi-glass

(space is material and material is space)

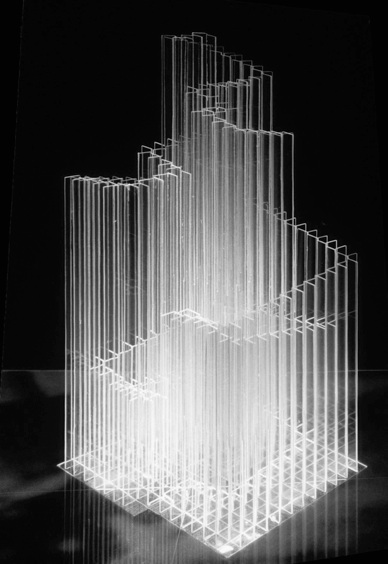

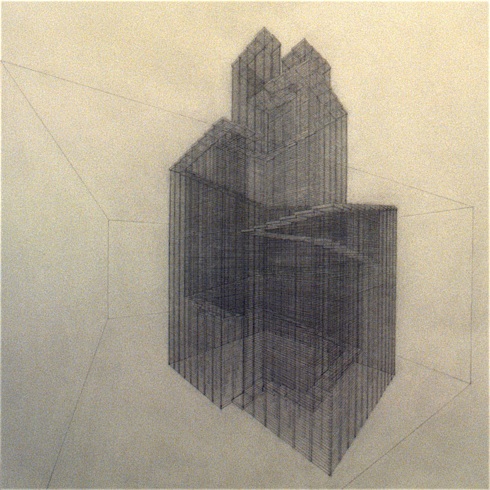

Perspective looking towards South

Exterior view on the front side of the translucent paper

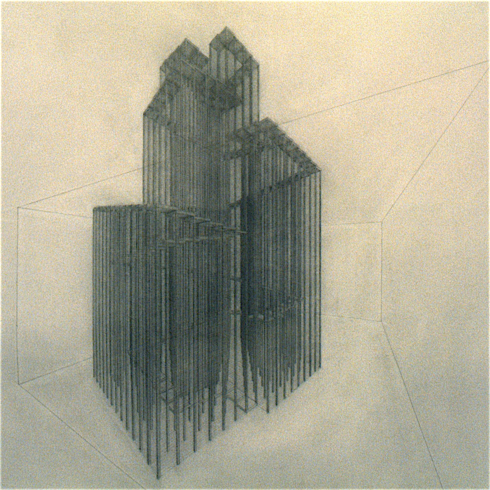

Perspective looking towards South

Interior view on the back side of the translucent paper

Conregio + Cortumio

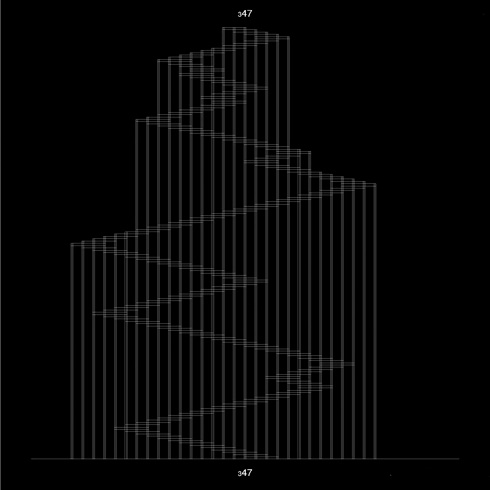

Elevation looking towards West

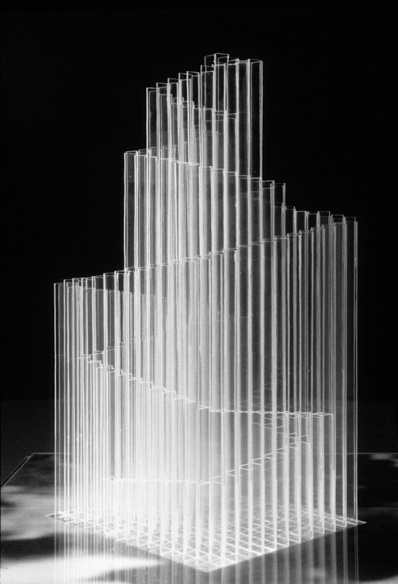

Model looking towards West

Negative model in plexi-glass

(space is material and material is space)

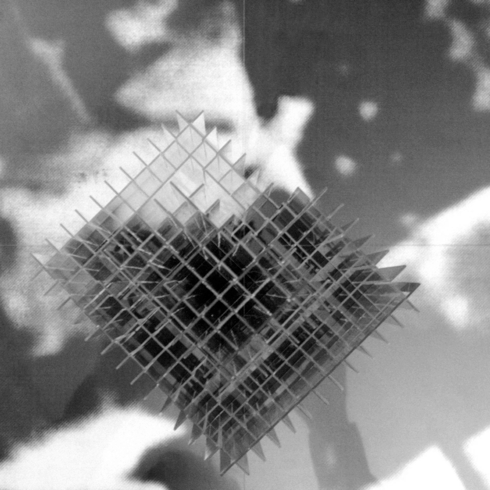

Model from above

Negative model in plexi-glass

(space is material and material is space)

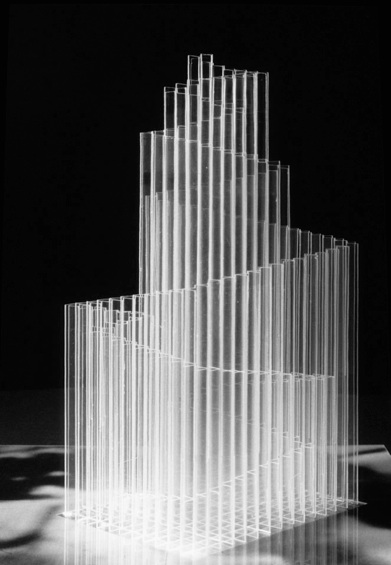

Model looking towards East

Negative model in plexi-glass

(space is material and material is space)

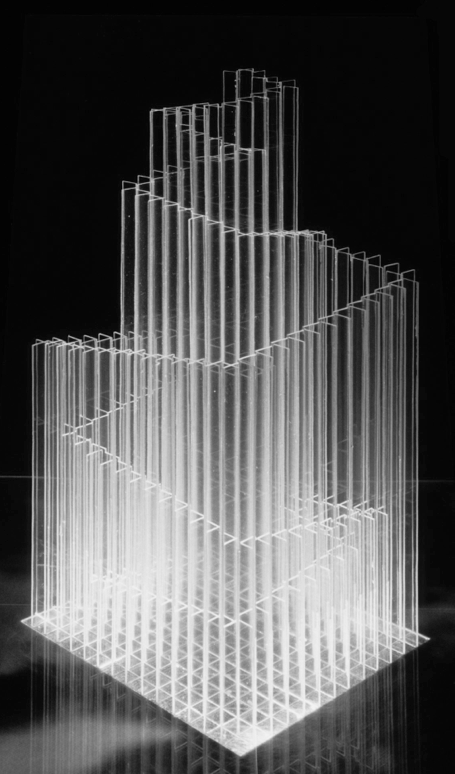

Model looking South

Negative model in plexi-glass

(space is material and material is space)

Model looking towards North

Negative model in plexi-glass

(space is material and material is space)
